PROGRAMA DE ELEVADORES

Full range of single and
double column lifting
devices. scanlift SC 350 scanlift SC 350 scanlift SC 350 scanlift SC 350 Double column lifting
device for plastic/metal
crates/boxes
- Dual function, shown with
plastic crates/boxes. Double column lifting
device for plastic/metal
crates/boxes
- Dual function, shown with

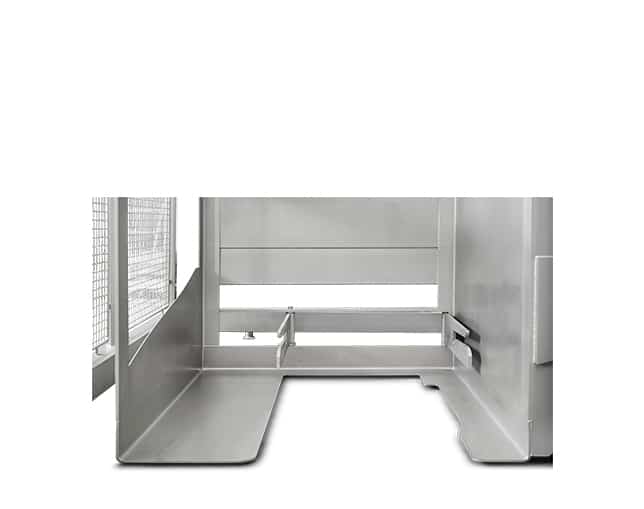

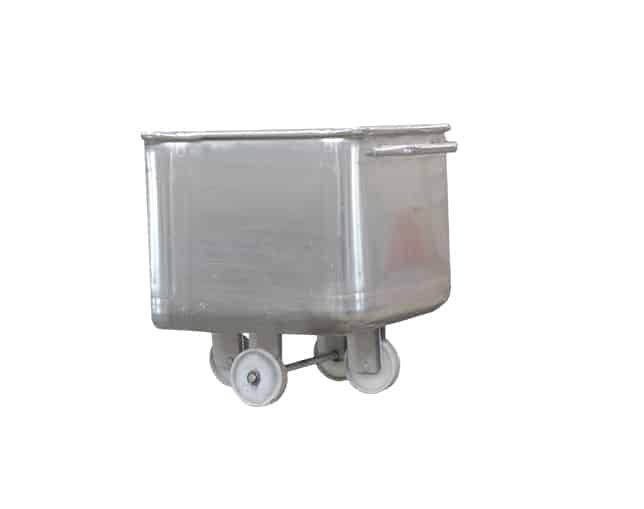

200/300 liter trolly. Detail showing how forks
for 200/300 liter trolly
works.
Dispositivos de elevación
scansteel foodtech A/S ofrece una amplia gama de dispositivos de elevadores y cargadores giratorios de la serie scanLift. scansteel foodtech A/S fabrica dispositivos de elevación de columna simple y doble.

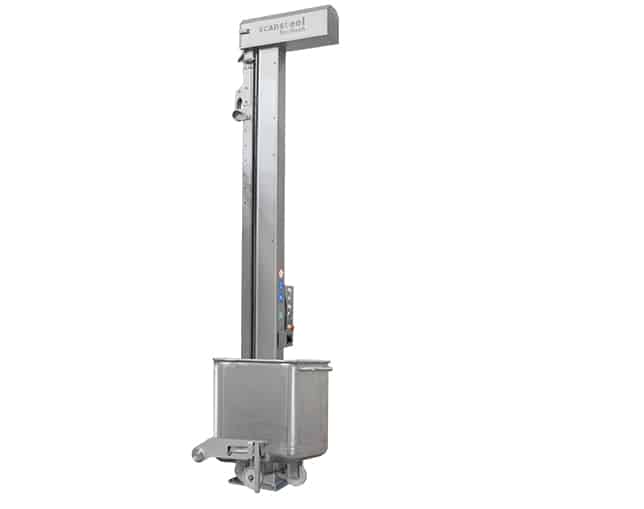

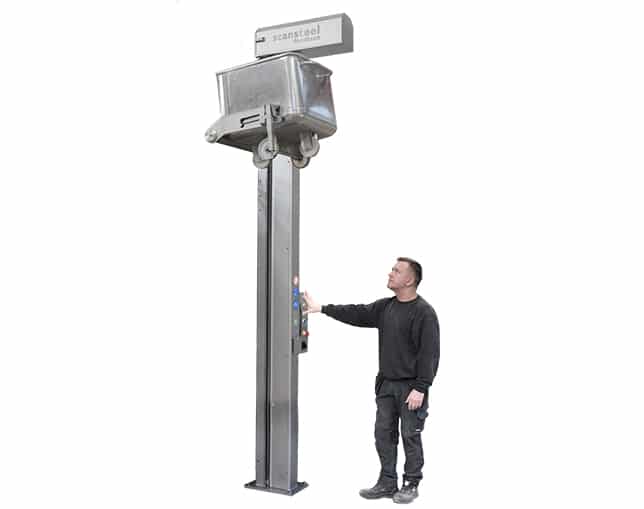

Columna simple:

  • scanLift tipo SC 350
  • scanLift tipo SC 500
  • scanLift tipo SC 1000

Columna doble:

  • scanLift tipo DC 1200
scanlift-06
scanlift-01
scanlift-01
scanlift-02

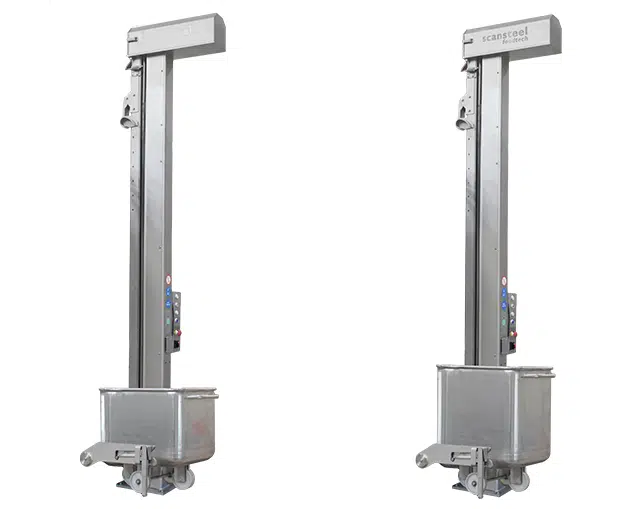

scanlift-07

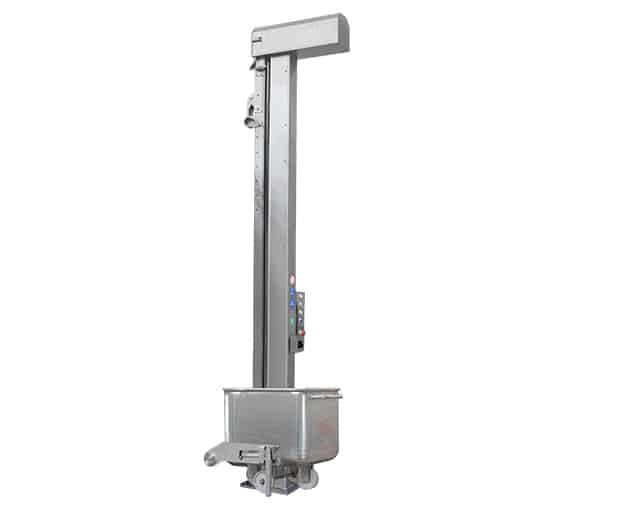

scanlift-06
scanlift-05
scanlift-03
scanlift-04
Lifting_devices02
Lifting_devices03
Lifting_devices04

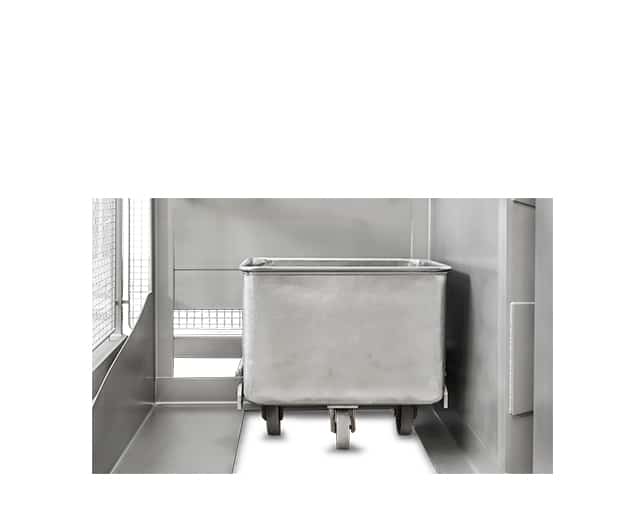

Lifting_devices05
scanlift-08
scanlift-09

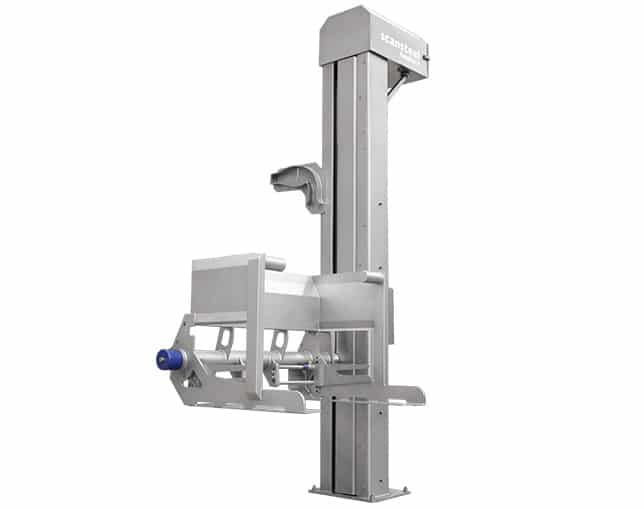

scanlift-10

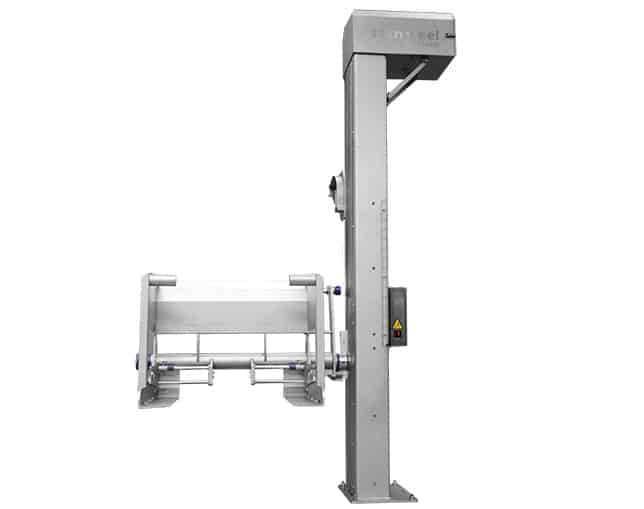

scanlift-11
scanlift-13
Video Of Double Column Loader

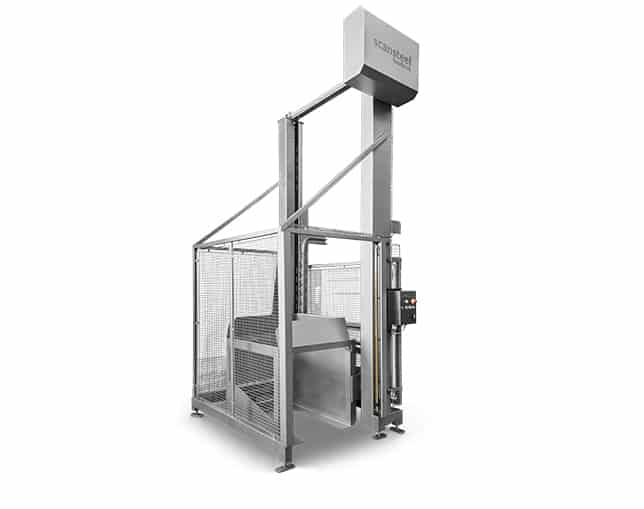

Double column lifting device for plastic/metal crates/boxes.
– Dual function, shown with plastic crates/boxes.

Double column lifting device for plastic/metal crates/boxes.
– Dual function, shown with 200/300 L trolley

Please contact scansteel foodtech A/S for special application/
lifting devices for boxes, trolleys and Dolav boxes. Contact us here

scansteel foodtech® scanLift SC 1000
Double Column Heavy Duty incl. Pallet Inverter
This is the ultimate Heavy Duty Double Column Loader with built in hydraulic pallet inverter, scanLift has been
designed for lifting/feeding of whole pallets of frozen blocks, containers of frozen blocks and similar applications. A
typical application is feeding into the scansteel foodtech® whole Pallet Crusher, WPC series. The built in pallet inverter
eliminates the need for at stand alone pallet inverter (depending of exact and specific application and customer
needs/demand).

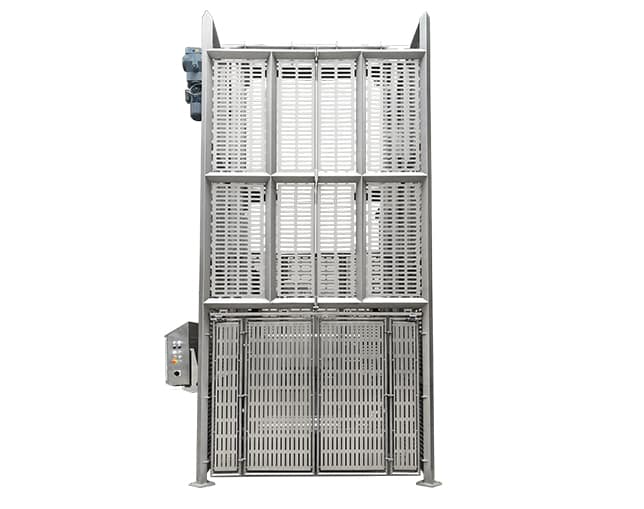

The scanLift Double Column loader with pallet inverter shown with all safety fences is running position.

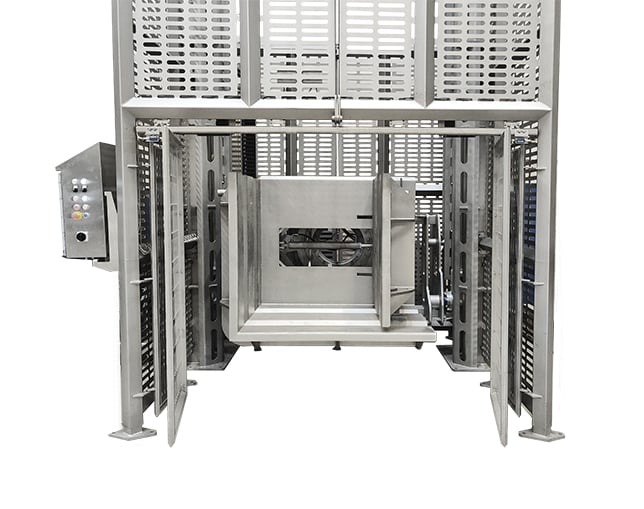

The scanLift Double Column loader with pallet inverter shown in infeed position with safety gate open. Also the pallet inverter is shown. Typically the double column loader is loaded with a fork lift truck.

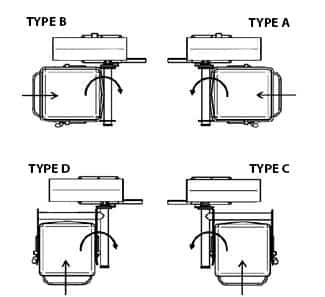

Discharge Height
Type A and B
Discharge Height in mm.		 Type C and D
Discharge Height in mm.
1400-1700 1400-1700
1700-2000 1700-2000
2000-2300 2000-2300
2300-2600 2300-2600
2600-2900 2600-2900
2900-3200 2900-3200
3200-3500 3200-3500
3500-3800 3500-3800
3800-4100 3800-4100
Especificaciones técnicas

Motor:
Capacidad de elevación::
Altura de elevación:

SC 350

0.75 kW
350 kg incluido el carro.
1400 – 4100 mm

SC 500

1.1 kW
500 kg incluido el carro.
1400 – 3200 mm

DC 1200

2.2 kW
1200 kg incluido el contenedor.
1400 – 4300 mm
